How much can I tow? The honest math

1. Towing capacity: The number everyone quotes

This is the maximum loaded trailer weight your truck is rated to pull, and under the SAE J2807 standard it is not a brochure number: a manufacturer rating to that standard has to demonstrate it. The standard sets minimum performance for acceleration, gradeability, trailer sway, braking and parking-brake hold, and hitch structure. The gradeability test is not a flat track. The combination climbs Arizona SR 68 to Union Pass, 11.4 miles, at 100 degrees or hotter, with the air conditioning on maximum, and a single-rear-wheel truck has to hold at least 40 miles an hour the whole way up. Other tests launch it five times from a standstill up a 12 percent grade, and measure its stopping distance. The standard also assumes a 150 pound driver and a 150 pound passenger, up to 70 pounds of aftermarket hitch, and a test trailer of a defined frontal area. Your truck, loaded the way you load it, is not that truck. Find your number in the owner's manual towing table for your exact cab, engine, axle ratio, and four-wheel-drive setup, never the television commercial. It is not printed on the door, which is why it gets misquoted.

2. Payload capacity: The one that bites first

Payload is how much weight your truck itself may carry on top of its own curb weight: people, gear, hitch hardware, and the tongue weight pressing down on the hitch. Fuel is not on that list, and that catches people out, because a full tank is already inside the curb weight the rating was worked out from. Subtracting it again takes 150 to 250 pounds off a number that was never yours to spend. It lives on the yellow and white sticker inside the driver's door, the one that says occupants and cargo should never exceed a specific number. That placard is federal law, required by FMVSS 110 on any vehicle up to 10,000 pounds GVWR, which is why it sits in the same place in almost every truck a travel trailer gets hitched to. Above 10,000 pounds that standard stops applying, so on a one-ton truck the placard is the maker's own label rather than a regulated one, and it is still the number that governs. Payload is the limit that arrives first, which is why a half-ton can promise 10,000 pounds of towing on paper while the sticker allows nowhere near that once four people and a dog are in the cab. The weight-distributing hitch counts too, and it is not small: the head and shank on a properly set up RV run 75 to 100 pounds, bolted to the receiver, every ounce of it against payload. Tongue weight counts against payload, and too much of it unweights the front axle, which is the axle that steers.

3. Trailer GVWR: The heaviest your trailer may ever be

Gross Vehicle Weight Rating is the maximum a loaded trailer may weigh, printed on its own sticker, usually the front left or inside a cabinet. Dry weight, unloaded vehicle weight, is what it left the factory at, before water, propane, bikes, and gear. A dry weight of 5,500 pounds can be 6,500 loaded before you see a campground. You compare your loaded trailer weight to the trailer's GVWR, not to the dry weight, because an overloaded trailer is what overheats tires and bends axles.

4. Gross Combined Weight Rating: The binding ceiling for the whole RV

GCWR is the most the truck and trailer together may weigh, everything, truck, people, fuel, trailer, cargo, all of it. It lives in the owner's manual towing table. Your truck can be under its own GVWR, your trailer under its GVWR, and the combination still over GCWR, and that is, in every meaningful way, a no. GCWR is the number that protects the drivetrain, the transmission, and the brakes on a downhill grade, which is rarely where people think about it.

These four numbers are not paperwork, they are engineering limits, and each one you cross takes the RV measurably closer to a specific failure.

Exceed payload or tongue weight and you lift the front axle. The rear suspension squats, the headlights point skyward, and the front tires, the ones that steer, lose their contact patch. Steering gets vague, and at 65 miles an hour with a crosswind, vague steering on a loaded RV is how a lane-change becomes a ditch. More weight also means more energy the brakes have to shed, which is the failure described two paragraphs down.

Overload the tires and you build heat. Every tire has a load index, and a tire carrying more than its rating runs hotter. Heat is what does the damage: NHTSA's own tire guidance is that sustained high temperature can cause a tire to deteriorate, which leads to blowouts and tread separation. NHTSA counts 511 people killed in tire-related crashes in the United States in 2024, and a trailer or rear-axle blowout at speed is one of the fastest ways to start the swaying that turns into a jackknife.

Exceed gross combined weight and you cook the brakes. On a long mountain descent, more mass means more kinetic energy the brakes must convert to heat. Past the design limit, the pads and rotors get so hot they lose friction, the brake fluid can boil, and the pedal goes soft. An RV with no effective brakes and tons of momentum on a 6 percent grade is not a breakdown. It is a rescue. The mechanical stresses compound: engine overheat, transmission wear, suspension strain, frame flex, all at once.

And the brakes that matter are not all on the truck. A trailer heavy enough to need brakes has to have its own, working through a controller in the cab. The federal rule that set this benchmark governs commercial vehicles, not your RV, but it is worth knowing what it says about the worst case: trailer brakes have to apply automatically and immediately if the trailer breaks away, and stay applied for at least 15 minutes. What actually binds a personal RV is state equipment law, and the thresholds differ by state rather than sitting at one number: California requires brakes on a trailer coach at 1,500 pounds, Washington draws its line at 3,000 pounds, and Oregon sets no trailer-brake weight threshold at all, working from a stopping-distance standard instead. The 3,000 pound figure people repeat comes from a federal exemption written for commercial vehicles, not from a national rule. A combination can be inside every rating on this page and still be overloaded in the way that matters on a descent, because the controller is set too light or the trailer brakes have not been adjusted in years. The check takes ten seconds: at walking pace, squeeze the manual override and see whether the trailer pulls back. If nothing happens, the truck is doing all the work.

And the insurance note no one likes. There is no rule that an overweight RV is automatically an uninsured one, and there is no rule that it is covered either: exclusions vary by state and by policy, so read yours rather than arguing from a forum post. What overloading does is hand everyone else in the crash a story about how you loaded the RV: the scale ticket and the owner's manual are already in evidence, and you are the one who has to explain the number on the sticker. What is not in question is that overriding your ratings is a decision you make in the driveway, not one that gets made for you afterwards.

Now look at what that rating actually is. The test is demanding, but it is still one test: one trailer of a defined size, one grade, one day, a professional driver, no traffic, and a pass line the vehicle only has to meet. It tells you the point at which the combination is just good enough. It knows nothing about the gust front that meets you sideways on an open bridge, the panic stop when someone cuts in, the load that shifts because a strap stretched, or the second and a half it takes you to react. A rating is also a ceiling rather than a target: at exactly 100 percent you have nothing left for any of that.

The 80 percent rule is not in the standard and it is not law. It is a convention, and a reasonable one, because it puts margin back for the things a test cannot measure. Keep the loaded trailer at or under 80 percent of rated towing capacity, and apply the same thinking to payload and combined weight. The towing calculator flags anything over 80 percent as yellow for exactly this reason.

The worked example, one line per limit

Three of the four ratings, and the tightest one is not where most people look. Towing capacity is the comfortable one here at 70 percent. The trailer is the close call, at 92 percent of its own GVWR. The 80 percent convention is applied to the truck's towing rating, but a trailer sitting that near its own ceiling deserves the same scrutiny, because nothing about a trailer's GVWR is a test result that has margin built in.

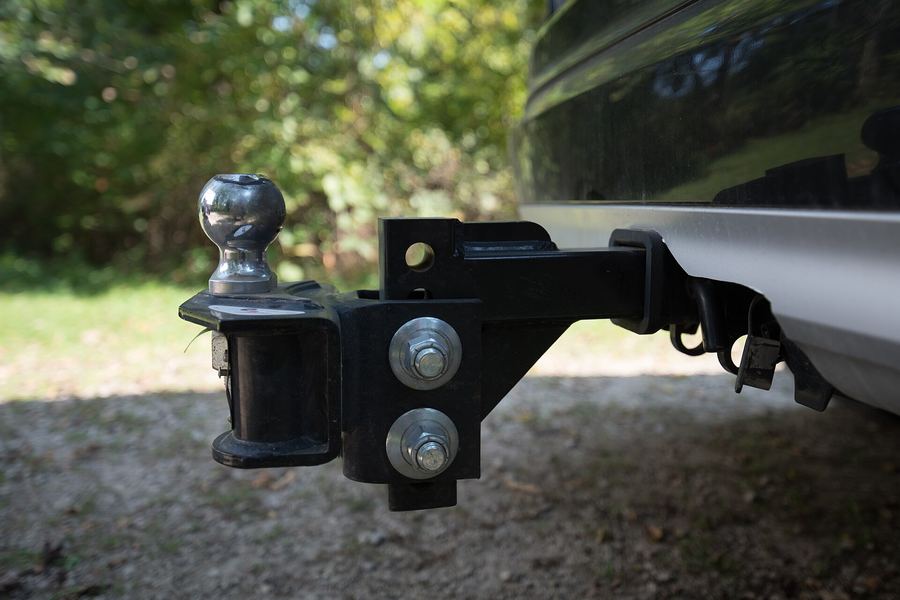

Two things the table does not count, and both are real weight. The 1,169 pounds of payload is people, gear and tongue weight; it leaves out the weight-distributing hitch hardware, which is another 75 to 100 pounds bolted to the receiver. Add eighty pounds and the same truck sits at 1,249, or 83 percent of its payload rating, past the 80 percent line. And the fourth rating has its own field now: enter the GCWR and the calculator weighs the loaded truck and the loaded trailer against it, which is the one limit that binds the whole combination.

Where every number lives

• Towing capacity and GCWR: the owner's manual towing table for your exact cab, engine, and axle, or the maker's towing guide.
• Payload and truck GVWR: the yellow and white sticker inside the driver's door.
• Trailer dry weight and GVWR: the sticker on the trailer, front left or inside a cabinet.
• What it all adds up to loaded: a certified scale. Find one near you, weigh the RV as you actually travel, and the printout settles every estimate on this page and in the calculator.
