RV electrical problems: How to find the fault

Nothing works on 12 volts, plugged in or not

Look at the battery feed path: the disconnect, the main fuse, the battery terminals. If the converter is running, some 12-volt power should exist regardless of the battery.

Works plugged in, dies when you unplug

The converter is carrying everything and the battery is not contributing. Either the battery is finished, or it is not being charged. Those are different problems with the same symptom, and the next section separates them.

Dim or weak even while plugged in

The converter or its 120 volt feed. On shore power a healthy converter carries the normal 12-volt loads and keeps the battery charged, which is why the lights work with no battery fitted at all. The battery is not out of the picture, though: the two sit in parallel on the same DC bus, and the converter is current-limited, so a load that asks for more than it can deliver pulls the converter's voltage down and the battery supplies the difference. That is why the heavy intermittent loads, a slide or a jack, are where a weak converter shows itself first.

One circuit dead, everything else fine

That branch fuse, or the load at the end of it. Nothing upstream is at fault, because upstream feeds the circuits that still work.

Fuse blows again as soon as you replace it

There is a short on that branch. Do not keep feeding it fuses. See the fused-circuit guide in this cluster, because tracing a short is its own skill.

Something tests fine but will not run

Suspect the ground return. A bulb can have good power at the socket and still not light because the return path is corroded, which is why grounds deserve their own section below.

Battery flat after sitting

Parasitic draw. Something is drawing with the RV switched off, and the battery disconnect is the manufacturer's own answer.

Two things are worth understanding before you touch a meter, because both change how you search.

There are two sources, not one

The battery feeds the panel, and the converter feeds the same panel. They meet at the DC bus rather than sitting in a line, and the converter's charging path runs backwards up the battery's own wire. WFCO states this in its own manual: a battery is not required for converter operation, and the battery works in conjunction with the converter to supply DC power. That single fact explains why an RV with a completely dead battery still has working lights when it is plugged in.

Everything returns through the chassis

The frame of the RV is the return path for many circuits. Anywhere that return path is corroded, painted, or loose, current cannot get back to the battery and the device behaves as though it has no power at all. This is the fault that gets mistaken for a dead battery or a failed device more often than any other, because a bad ground presents as a fault in whatever device happens to be at the end of the circuit.

It is not the return path for all of them. A trailer commonly runs a dedicated negative wire back to a bus for the house circuits, with the frame carrying the vehicle lighting and brakes, and Progressive Dynamics' own wiring diagram says the chassis may or may not carry the DC negative. So a circuit with its own negative wire has its own set of connections to check, and a fault there will not show up as a frame problem at all. Where the frame is used, its joints are the corrosion sites, and that is the half of this section that catches people.

Working the chain

Start at the source and move outward. Battery voltage at the terminals, then at the disconnect, then at the main fuse, then at the bus, then at the branch fuse, then at the load. The first point where the reading stops being correct is where the fault is. Doing that in order is faster than testing anything at random, and it never leaves you replacing a part that was never broken.

Two things that differ between RVs

Not every RV has a battery disconnect, and many towables use a resettable breaker near the battery instead of a switch. Motorhomes add a second battery for the chassis and a device that decides which battery gets charged, so a motorhome can show a charging fault that is really that device not closing, not the converter.

One manufacturer warning worth taking literally

Progressive Dynamics states in its manual that the chassis bonding wire must be a separate wire run directly from the grounding lug on the converter, and warns against connecting the output negative to the chassis using the same wire. It is labelled a fire risk. Do not improvise that one.

Diagnosing an electrical fault means comparing what you measure against the maker's baseline for your battery chemistry and your converter. Battery numbers are chemistry specific, so find yours first.

Flooded lead-acid, at rest, at 77 degrees

These are Trojan's figures for a deep-cycle battery, and they are the classic shape: 100 percent reads 12.73 volts, 90 percent 12.62, 80 percent 12.50, 70 percent 12.37, 60 percent 12.24, 50 percent 12.10, 40 percent 11.96, 30 percent 11.81, 20 percent 11.66, and 10 percent 11.51. Charging set points from the same source are 14.7 volts absorption, 13.5 float, and 16.2 for equalization.

AGM. Lifeline publishes 14.3 volts plus or minus a tenth for absorption and 13.3 plus or minus a tenth for float, both at 77 degrees. Renogy's AGM manual sets a boost voltage of 14.4 and a float of 13.8, and states that the battery is considered fully charged when terminal voltage rises to 14.4 and fully discharged when it falls to 11.0. Note that AGM is not the same target as flooded, which is why a charger set for the wrong chemistry undercharges or cooks the bank over time.

Lithium, and the important caveat

A Renogy resting chart reads 100 percent at 13.6 volts, 90 at 13.4, 80 at 13.3, 70 at 13.2, 60 at 13.1, 50 at 13.0, 40 at 13.0, 30 at 12.9, 20 at 12.8, 10 at 12.0, and 0 at 10.0, with charging at 14.4 plus or minus a fifth. The caveat is theirs: the curve is much flatter for most of the usable range, so voltage alone tells you much less. Do not use a voltmeter as a fuel gauge on lithium. A shunt or a coulomb-counting monitor is the honest answer there.

Before you take any of those readings, Renogy states the battery must be disconnected from the system and allowed to rest for at least two hours. A reading taken while the charger is running, or minutes after you unplugged, is not a state of charge. This is why people conclude their battery is fine when it is not.

Now the converter

WFCO publishes an explicit pass test: if the voltage reads 13.6 volts DC plus or minus a fifth with no load, the converter is functioning properly. Some of their series state a wider window instead, 13.6 to 14.4 on the 8700-AD, and 13.6 to 14.6 on the lithium setting and the 8900-AD. On the lithium setting, or on an auto-detecting unit that has switched for lithium, the target is higher at 13.6 to 14.6. Progressive Dynamics publishes a nominal 13.6 volts, a boost mode around 14.4, and a storage mode around 13.2. Their operating modes are bulk at 14.4, absorption at 13.6, and float at 13.2.

Why the mode matters for diagnosis

A converter sitting at 13.2 volts is not necessarily broken, it may simply be in float because the battery is full. If you measure during float and conclude the converter is weak, you will replace a healthy unit. Force a load, like switching on lights or a fan, and watch whether it climbs into bulk.

This is the technique that separates a diagnosis from a guess.

The rule that makes it work

Voltage drop only appears under load. Victron states it plainly: the drop becomes larger when the current increases. A circuit that reads perfectly with everything switched off can fail badly the moment it has to carry real current. This is exactly why a light tests fine at the socket and still will not light.

How to measure it

Put the circuit under its normal load, not idle. Measure the voltage at one end of the path, then at the other end, and subtract. Victron's own example is to load an inverter to maximum, measure across the DC connections at the inverter, measure across the battery terminals, and compare. The difference between the two readings is the voltage drop. The same method applies to any long run in the RV.

What counts as too much

Victron advises aiming for no more than 2.5 percent, and publishes the equivalent for a 12-volt system as 0.3 volts. That is a useful hard number to carry in your head: if you are losing more than about a third of a volt along a path at full load, something in that path is resisting.

Resistance hides in obvious places

Victron lists the usual suspects: cable length and thickness, fuses, shunts, switches and breakers, loose connections, dirty or corroded contacts, and bad cable lug crimps. They also publish sample resistances, which is genuinely useful for calibrating your expectations. A single cable connection is about 0.06 milliohms. A 500 amp shunt is about 0.10. A 150 amp fuse is about 0.35. A two metre 35 square millimetre cable is about 1.08. Add enough of those and the total becomes visible as heat and as lost volts.

Testing the ground return specifically

The method is a comparison rather than a single reading. You measure the voltage across the battery, then measure the voltage across a loaded test bulb or device, and the two should be virtually identical. If they are not, there is a drop somewhere in the ground path. The important detail is the word loaded: use an old-fashioned incandescent test light that actually draws a few watts, because an ohmmeter uses so little current that it cannot tell you whether a ground connection will carry any real load. A ground can read perfectly on a meter and still fail the moment it has to work.

Owners lose real money to these four words, because they sound alike and do opposite things.

Converter

Takes 120 volt shore power and turns it into 12-volt DC. It runs your lights, fans, water pump and control boards.

Inverter

Goes the other way. Takes 12 volts from the batteries and steps it up to 120 volts AC so household outlets work when you are not plugged in.

Converter/charger

This is the technical name for the unit most RVs actually have, because it does both jobs: it runs the 12-volt system and it charges the battery. WFCO calls its unit a Converter-Charger and Progressive Dynamics calls theirs a Converter/Charger. If someone tells you to replace your converter when you have an inverter charger, you have been given the wrong advice, because there is no separate converter in that RV.

Inverter/charger

One unit doing both jobs with an automatic switchover, and it replaces the converter in many mid-range and higher end RVs. When one of these is fitted, the old converter is disconnected and becomes obsolete.

The three battery-combining devices, which only matter on motorhomes

An isolator uses diodes as one-way valves, with an inherent forward voltage drop of roughly 0.7 volts across the junction. An ACR combines the batteries while charging and separates them when charging stops, closing at around 13.0 volts and opening at around 12.75. A BIRD is the motorhome version that charges the coach battery from the alternator and the chassis battery from the converter, closing at about 13.3 volts and dropping out at about 12.8. That last part matters for diagnosis: if a BIRD is not closing, your chassis battery will not charge on shore power and it will look exactly like a failed converter.

Charge controller

Solar only. It regulates what the panels put into the battery and stops them overcharging. It is not part of the converter circuit at all, and a fault there will not affect shore power operation.

RV fuses are not mysterious once you know which is which.

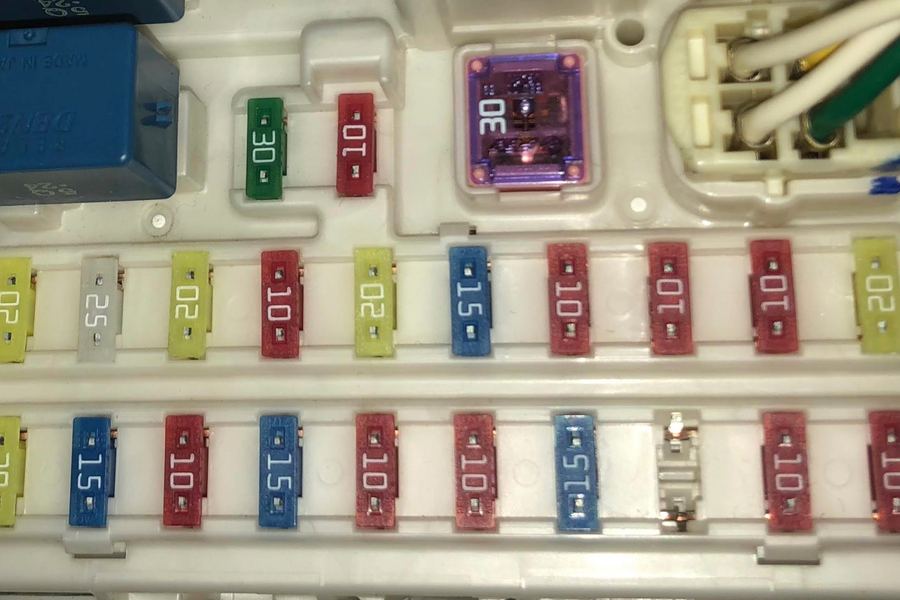

Branch circuits use ordinary automotive blade fuses. WFCO specifies ATC or ATO types, naming Littelfuse type 257 and Bussmann type ATC as examples, so replace like for like rather than whatever fits the slot.

High-current feeds use bolt-on fuses. Mid-range feeders take MIDI style, and main battery feeds, alternator lines and inverter inputs take ANL style, which the maker rates from 35 to 750 amps. High-draw loads like slide-outs and leveling jacks often use resettable breakers instead.

The main fuse, which protects the battery feed to the panel. Its rating is specific to your panel, so check rather than assume. WFCO publishes the battery circuit fuse per model, in one series it is a 30 amp fuse on a numbered circuit that differs by model.

Reverse polarity fuses

These are on the converter itself, usually two of them, and their only job is to protect the converter if the battery is ever connected backwards. WFCO is blunt about the trigger: a reversed battery connection, even if only for a second, will cause these fuses to blow. That is a very common self-inflicted fault after battery replacement, and it presents as a converter with no DC output at all. Their published instruction is to check the reverse polarity fuses first, inspect for a break in the element, and if there is no visible break, check continuity. Ratings vary by model, in one series running from a single 40 amp fuse up to two 40s depending on output.

Telling a fuse from a breaker from an open circuit

Inspect the fuse element visually, then confirm with continuity. For voltage, measure both sides of the fuse under load, because a good fuse reads the same on both sides and a failed one does not. For an AC breaker, a tripped one sits in the off or middle position, and the reset is to push it fully off and then back on, not just to flick it. An open circuit is what remains when the fuse is good, the voltage is absent, and the continuity test does not explain it, which is when you go looking upstream.

In an RV, the chassis is bonded to the 12-volt negative and serves as the return path for many circuits, though not all of them. It is not an earth ground in the household sense and does not need to be. It is a local ground plane: the frame works as the return because it is the largest piece of metal in the vehicle, not because it is connected to the earth.

Why grounds fail

Every connection point between two different metals is a corrosion site once moisture is involved, and corrosion raises resistance until the connection effectively disappears. The result is a device that has proper voltage at it and still will not run, which sends people looking at the device instead of the frame.

The clue that points at a ground rather than a supply

If the bulb or device tests correctly with an ohmmeter, and correct voltage is present in the socket, and it still does not work, the return path is the suspect. That specific combination is the signature.

How to test a ground

Use the loaded comparison described in the voltage-drop section. The reason an ohmmeter is not enough is worth understanding: it pushes so little current through the connection that it cannot tell you whether that connection will carry a real load. A ground bond can read a fraction of an ohm and still fail under ten amps. Loaded testing is the only honest test.

A separate problem with the same name

On the 120 volt side, shore power grounding is a genuinely different issue with a safety dimension, including what is often called a hot skin condition where touching the RV gives a shock. That is not the 12-volt ground return and should not be treated as the same fault: NFPA 1192 sets out the bonding and grounding requirements that keep the bodywork from becoming a live conductor. If you feel a tingle from the vehicle body, stop and treat it as an AC grounding and bonding fault, not a 12-volt one.

Expected draw thresholds

There is no published acceptable total draw figure for an RV. Winnebago's own service document declines to give one, stating that you must understand the electrical equipment on your specific vehicle to know what is normal, and that typical owner manuals do not share that detail. They list the usual culprits: slide-out control modules, electric step modules, radio memory, engine and transmission computers on the chassis side, and TVs, inverter chargers, the LP gas shut-off solenoid and illuminated touch panels on the house side. Their recommended countermeasure is refreshingly simple: use the battery disconnects provided.

Individual components do publish their draws, which lets you add up your own RV. A BIRD control module is under 2 milliamps at standby. A battery-combining relay draws tens of milliamps while it monitors and rather less once it has operated. A 1500 watt inverter can draw 500 to 600 milliamps at no load, and a 2000 watt inverter charger lists 25 watts idle in normal mode. Two or three of those together turn into a genuinely flat battery over a month.

The test

Disconnect the negative battery cable, connect the meter between the battery post and the cable you just removed, so all current runs through the meter. This is the method Fluke publishes for automotive parasitic drain, and the order matters. Let the vehicle sit for ten to forty five minutes first, because modules need to go to sleep and an early reading includes things that will switch off. Then pull fuses one at a time and watch the current: when it drops significantly, you have found the circuit. If nothing much changes, use the battery disconnect and accept that this is what the disconnect is for.

What counts as normal, with the caveat attached. The figure most often quoted in the trade, and it comes from a meter manufacturer's general automotive guidance rather than from an RV source, is that below 50 milliamps after the vehicle is asleep is normal and above 100 milliamps is suspect. Treat it as a starting point rather than a rule: that figure is generic automotive guidance from a meter maker, not an RV figure. You can also work it backwards: if you lost 48 amp hours over 12 days, that is 4 amp hours a day, which is 166 milliamps, and that is a real and findable draw.

Converter faults in the maker's own table

Progressive Dynamics publishes a proper troubleshooting table, which is unusual and useful. On no output, their listed causes are that AC power is not connected, that external fuses are blown (typically through reverse polarity), a short circuit, a shutdown from overheating, or a shutdown from over voltage, which occurs above 132 volts input. On low output, they list an excessive load for the converter, an input voltage outside 105 to 130 volts, or a battery with a bad cell. WFCO adds that on a short circuit the converter will drop its output to zero, and that under excessive load the current holds constant while the voltage falls. WFCO also notes that if the converter reads zero at the battery, you should check for an open inline fuse in the battery wire circuit.

Wear and environmental failures

Cooling fan failure leading to a slow heat-related death is widely described in the trade. Pitted contacts in a battery disconnect, corroded terminals and ground points, and converters wearing out from heat, vibration, moisture and surges are all the same category. They are wear and environment problems rather than faults with a listed cause, so treat them as strong suspicion until you have measured something.

What you pay comes down to three things: the part, the diagnosis, and how hard the fault is to reach. A diagnosis is its own charge at most shops, and some credit it against the repair if you go ahead.

The part is rarely the expensive half. A fuse, a breaker or a disconnect switch costs little. A converter or an inverter charger is a different grade of part entirely, and one with a bigger output costs more than a small one for the obvious reason. Distribution panels are surprisingly cheap as parts: the labour is the cost there, not the panel.

Labour is where the money goes, and it scales with access. Shop rates run high and are charged by the hour, so a fault behind a panel or under a bed is a longer job than one at the battery. Large inverter chargers are quoted in hours as much as in parts, and the range is wide because the installation is.

Ask before you authorise. Two questions change the bill more than anything else: was the fault confirmed by measuring rather than assumed, and is the quote parts or parts and labour.

The comparison worth making

If a shop quotes a converter replacement, ask whether the reverse polarity fuses were checked first, and whether the fault was confirmed by measuring at both the converter and the battery. Those two questions cost nothing, and they eliminate the most common false diagnosis in this system.
