First, identify your RV refrigerator type
The door tag or the model number on the frame settles it, and so does the back of the unit. An absorption fridge has a visible rear vent on the outside wall and a sealed cooling unit behind it with no compressor. A 12-volt compressor fridge has a compressor, like the fridge at home, and no rear vent requirement. Roughly 80 percent of factory-installed RV fridges are absorption units, so if in doubt, assume absorption first.
Absorption refrigerators: The RV classic
>

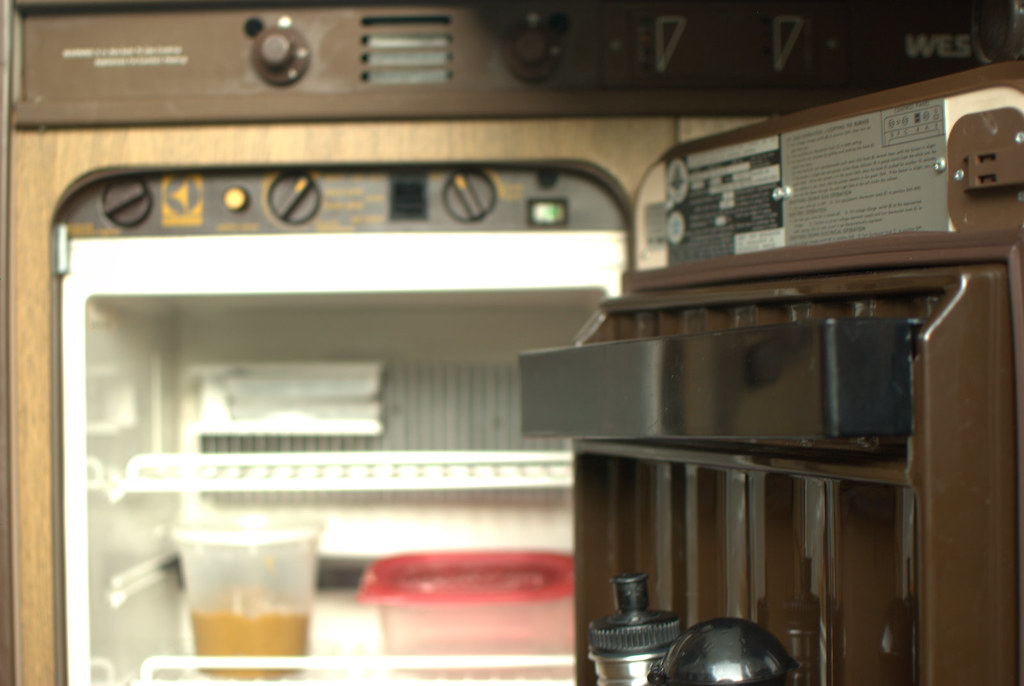

The absorption fridge uses a sealed ammonia and water solution and a flame or heating element to drive a cycle with no moving parts in the cooling unit itself. It runs on propane, on 120-volt shore power, and on some models 12-volt while driving. It must be level, needs good rear ventilation, and it is the type in the recall history.
12-volt compressor refrigerators: The modern alternative
A compressor unit pumps refrigerant mechanically, like the kitchen fridge, and runs on the house battery through a 12-volt DC supply. It does not care about level, does not need the same venting, and its most common failure is electrical: a low or sagging battery voltage that stops the compressor. Many owners moving toward boondocking install these to replace an aging absorption unit.
The troubleshooting and power math below are different for each, which is why identifying yours is not a formality.
Why an absorption RV fridge must stay level
An absorption fridge works by gravity. The ammonia solution flows downhill through the loop, and the burner heat drives the cycle. Park the RV noticeably tilted, and the flow stalls, which does two things: the fridge stops cooling properly, and the heat keeps pouring into a system that can no longer circulate it. If the RV is allowed to run that way repeatedly, the repeated overheating destroys the cooling unit from the inside out.
This is the safety angle that matters. The RV service industry has long treated unlevel operation as the leading contributor to absorption cooling unit failures. The National Highway Traffic Safety Administration recalls for Dometic and Norcold refrigerators trace fires back to cooling units that developed a fatigue crack in the boiler tube and released pressurized, flammable cooling solution. Dometic's recall alone covered more than 900,000 units. Running a fridge that is off-level, and running one that shows signs of a leaking cooling unit, is how a failed fridge becomes a fire hazard rather than a repair job.
Check your model against the recalls. Find the exact brand and model number, usually on a tag inside the fridge door or on the frame, and search it against the current NHTSA recall list. Some recalled units received a retrofit kit, and some retrofit kits are years old now. If your unit is on a recall list and was never reworked, that is the first thing to resolve, before any troubleshooting.
The symptoms that mean shut it off now: the smell of ammonia anywhere near the fridge, yellow residue or staining at the back or the sides, or the fridge running hard without cooling. Any of these can indicate a leaking cooling unit, and a leaking absorption unit is a potential fire hazard. Turn it off, run it on electric if you must use it at all, and have it inspected before trusting it again.
The free checks for an RV fridge that is not cooling
Level the RV
For an absorption unit, leveling is not optional. Level side to side and front to back with the blocks or stabilizers, then give the fridge hours, not minutes, to reach temperature. Absorption units are slow by design. For a compressor unit, leveling barely matters, though an extreme tilt is still bad for any RV's operation.
Clear the rear vents and the cooling fins
The back of the fridge rejects heat through the roof and wall vents. If either is blocked by debris, or the fins are packed with dust, the unit cannot shed heat and never gets cold. Vacuum the fins and clear the outside vents of leaves, insect nests, and anything else that found its way in. Some of that debris is also a fire hazard if it collects near the burner.
Check the door seal
A weak seal lets warm air in continuously and makes the unit run harder than it should. The dollar-bill test works: close the door on a bill, tug it, it should hold, all the way around. Clean the gasket, and replace it if a corner is crushed or torn.
Confirm the heat source is actually firing
On propane, you should hear a steady soft hiss at the burner and see a steady blue flame through the lower vent. A yellow or flickering flame means a dirty burner orifice, the number one owner fix, and cleaning it often restores cooling. On electric mode, the heating element behind the unit should be noticeably warm within 15 to 20 minutes; cold after that means the element has failed. On a compressor unit, check the battery voltage under load, because a battery that reads fine resting but sags when the compressor starts is the classic cause of a DC fridge that stops cold.
The expensive failure: The ammonia cooling unit
Run the fridge for several hours, then carefully feel the back of the unit, it is hot in places, so use care. The boiler at the top should be hot. The absorber lower down the back should be warm. The evaporator, inside behind the rear wall of the food compartment, should be cold. If the boiler runs hot but the compartments never cool, the ammonia charge is likely gone.
A cracked or leaking cooling unit loses its ammonia, and no amount of leveling or vent clearing fixes it. The signs are the yellow sodium chromate residue that appears where the solution has leaked, or the sharp smell of ammonia near the unit. Either means the cooling unit has failed, and the repair often costs more than replacing the entire refrigerator, which is why most owners replace. Do not leave a leaking absorption unit running; a leak is what turns a cooling unit failure into a fire.
RV fridge power draw: Why the mode matters
If your fridge cools but you are fighting your battery bank, the mode it runs in is the whole story. The three modes of an absorption fridge are not equal, and neither is an absorption fridge versus a compressor fridge.
- Absorption on propane: uses no battery power at all, consuming about one pound of propane for roughly eight hours of running. The standard choice for boondocking with an absorption fridge.
- Absorption on 120-volt shore power: draws about 300 to 400 watts continuously, which is fine on a pedestal and wasteful on a battery through an inverter.
- Absorption on 12-volt: the worst mode by far, drawing 10 to 30 amps and able to drain a 100 amp-hour battery in about four hours. It is intended only to hold the cold while driving, when the alternator is recharging the battery, and it is the mode to avoid at any other time.
- 12-volt compressor fridge: the efficient option, drawing roughly 3 to 5 amps while running and landing around 30 to 80 amp-hours per day depending on the unit and the heat. A modern compressor fridge uses roughly a quarter of the energy of an absorption unit running on electric. This is why a boondocking power budget treats about 25 amp-hours a day as the healthy baseline for a DC fridge.
If your fridge is an absorption unit and keeps draining the house battery, the fix is not a bigger battery, it is switching the fridge to propane or shore power, whichever fits where you are parked.
The other suspects, in order
The thermistor and thermostat
The thermistor is the sensor that tells the cooling unit how hard to run. A thermistor that has slipped off its fin is a classic and easy fix, just reposition it. A faulty thermistor can be tested with a multimeter and replaced cheaply. On some units, the thermostat simply needs to be turned up before anything else.
High ambient heat
Absorption fridges struggle in direct sun above about 95 degrees even with the vents working properly. Shade the RV and clear the vents; this is physics, not a fault. On a hot afternoon, an absorption fridge can read 10 to 20 degrees warmer than its setting and still be healthy.
Over-packed or door left open
A packed fridge blocks the internal airflow that carries the cold around the box. Airflow inside matters as much as outside, so leave the shelves breathing, and check that the door is actually latching, not just swinging shut.
The rule that saves most owners
Ninety percent of "my RV fridge is not cooling" begins as a leveling, ventilation, seal, or burner problem, all fixable in an afternoon. The ammonia loss is the rare and expensive failure, and you can recognize it before paying anyone to tell you, and you shut the unit down when you do. Keep the RV level, keep the back clear, and check the model against the recalls, and you have covered the ground between a cold fridge and a serious one.
Why does my RV refrigerator need to be level but my house fridge does not?
An absorption RV fridge works on gravity, the ammonia solution flows downhill around a closed loop that the burner heat drives. Tilt the RV and the flow stalls, so the unit stops cooling and the heat keeps building. A compressor fridge pumps refrigerant mechanically and does not care about level.
Is an RV absorption refrigerator a fire hazard?
Operating one off-level for long periods and running one with a leaking cooling unit are the two real risks. The NHTSA recalls on Dometic and Norcold units traced fires to boiler tube cracks releasing flammable cooling solution. This is why the safety steps matter: keep it level, check your model against the recalls, and shut the unit down if you smell ammonia or see yellow residue at the back.
My RV fridge cools on propane but not electric. What does that mean?
The heat source is the difference. On propane the burner heats the boiler; on electric a heating element warms the same boiler. If propane works but electric does not, the electric element or its 120-volt supply is the fault, not the cooling unit.
Why does my RV fridge drain the house battery so fast?
Check the mode. An absorption fridge on 12-volt draws 10 to 30 amps and can drain a 100 amp-hour battery in about four hours; it is meant only for driving. Running it on propane uses no battery at all. A compressor fridge draws 3 to 5 amps and lands around 30 to 80 amp-hours per day, which is why it is the boondocking choice.
Should I replace my RV absorption fridge with a compressor fridge?
Many owners do, especially full-timers and boondockers, because a modern 12-volt compressor unit uses roughly a quarter of the energy of an absorption unit on electric and does not care about level. The trade is cost, and the installation often needs a heavier 12-volt wire run from the battery. It is the right upgrade when the old absorption cooling unit is the failure and you live off-grid.
Sources
The manufacturer documents and safety recall notices this guide draws on, so you can check the figures for yourself.
